PoliFILTER XL

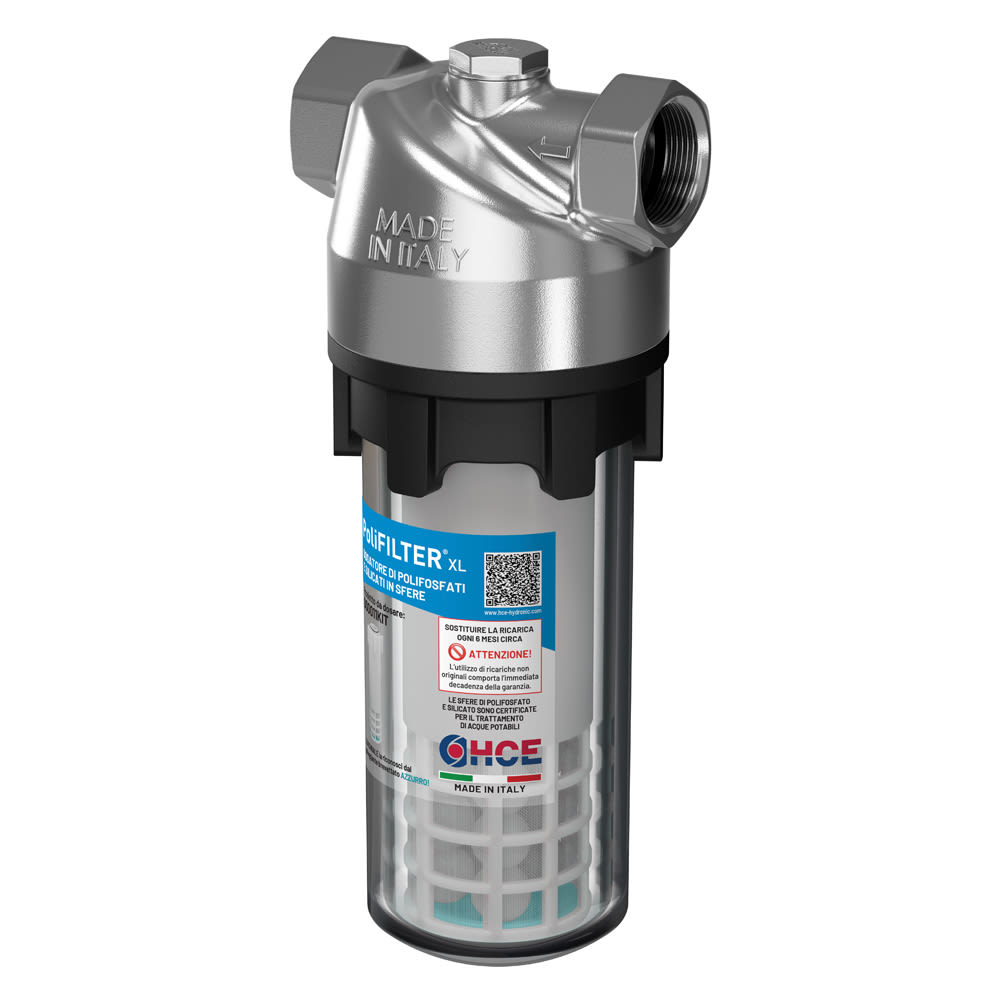

PoliFILTER® XL

Polyphosphate and silicate doser - high flows

Specific for domestic cold water circuit

Main features

  • Filtering action: 100 µm polypropylene mesh
  • Water hammer shock damper installation socket
  • Extra strong, extra heavy
  • Safety ring to avoid straining the bowl

Description

PoliFILTER® XL is a device without moving parts which, through the calibrated consumption of the spheres contained in the cartridge, doses polyphosphates and food-grade silicates into the cold domestic water. PoliFILTER® XL can be installed on the water system line to protect components installed downstream of it such as boilers, water heaters, dishwashers and washing machines. Only use original refill (code DS0011KIT).

  • Chrome-plated brass body
  • Threaded connections FF UNI-EN-ISO 228
  • 100 micron filter
  • Max. working pressure: 10 bar
  • Operating temperature range: 5÷30 °C
  • Ambient temperature: 5÷40 °C
  • Supplied with a polyphosphate refill with filter

Made in Italy | HCE
Technical specifications
PoliFILTER XL | Polyphosphate and silicate doser - high flows specific for domestic cold water circuit

SPECIFIC FOR HIGH FLOWS

CodeSizeUnitPackage
DS00110034S  ¾” F x   ¾” F  1 3
DS00110100S1" F x 1" F13

Download area

You must be registered to download some attachments

Login or sign in
 AttachmentTypeSize
pdf 2829 kb
Lock icon
pdf icon
PoliFILTER® XL - Assembly and maintenance instructions
pdf 278 kb

Technical specifications

Specification

PoliFILTER® XL: dosing unit of ball-shaped polyphosphate and silicate crystals with integrated safety filter to protect the system from limescale and corrosion. To be installed vertically on the cold water pipe of the water system. Dosed compounds due to calibrated consumption of the spheres based on the amount of water flowing through the component. Float with refill indicator for cartridge replacement. Chrome-plated CW617N brass threaded body, Grilamid® TR bowl, peroxide EPDM sealing elements. Flow coefficient Kv = ¾" (15.30 m³/h) - 1" (17.80 m³/h). Polypropylene safety filter size: 100 μm. Temperature: 5÷40 °C. Maximum operating pressure: 10 bar. Volume of water treated with one refill: approx. 230 m³. Connections: ¾" F x ¾" F or 1" F x 1" F.
